AiLi Battery Monitor Waterproof Voltage Remaining Capacity Lead-Acid LiFePO NiMH RSOC Digital Panel Waterproof Meter Water Resistant Voltmeter

Product Parameters: Voltage measuring range: DC6-120V (exceed 120V may burn the product) Test voltage: DC6~120V (decimal point automatic shift) The minimum resolution below 100V: 0.1V The minimum resolution above 100V: 1V Power Resolution: 1% Working current: 20mA Display mode: LED display Exterior dimension: L54*W30*H21mm Installing dimension: 47.2*27.3mm The measurement rate: more than 500mS/ times Voltage measurement accuracy: 1% (±2 digits) Lead length: >150mm Operating temperature: -10 ~ +65℃ Working humidity: 10 ~ 80% (no condensation) Working pressure: 80 ~ 106kPa Mode Instruction: 1-U adjust voltage: setting battery type: setting number of battery: setting "showing mode" Battery Type Instruction(Mode 2-b): 1.2V: NI-MH battery, each battery 1.2V 2 V: Lead-acid battery, each battery 2V 3.2V: Lithium iron phosphate battery, each battery 3.2V 3.7V: Polymer battery, each battery 3.7V 12 V: Lead-acid battery, each battery 12V Samples for setting: 12V Lead-acid battery( 1 section 12V series): select 12.0 on "2-b" setting, select 1 on "3-c" 24V Lead-acid battery( 2 section 12V series): select 12.0 on "2-b" setting, select 2 on "3-c" Note: Long press or short press the button to set the product. Please contact Customer Service to get the detail instruction. Never use this meter on circuit with HID(high intensity discharge), or it may burn.

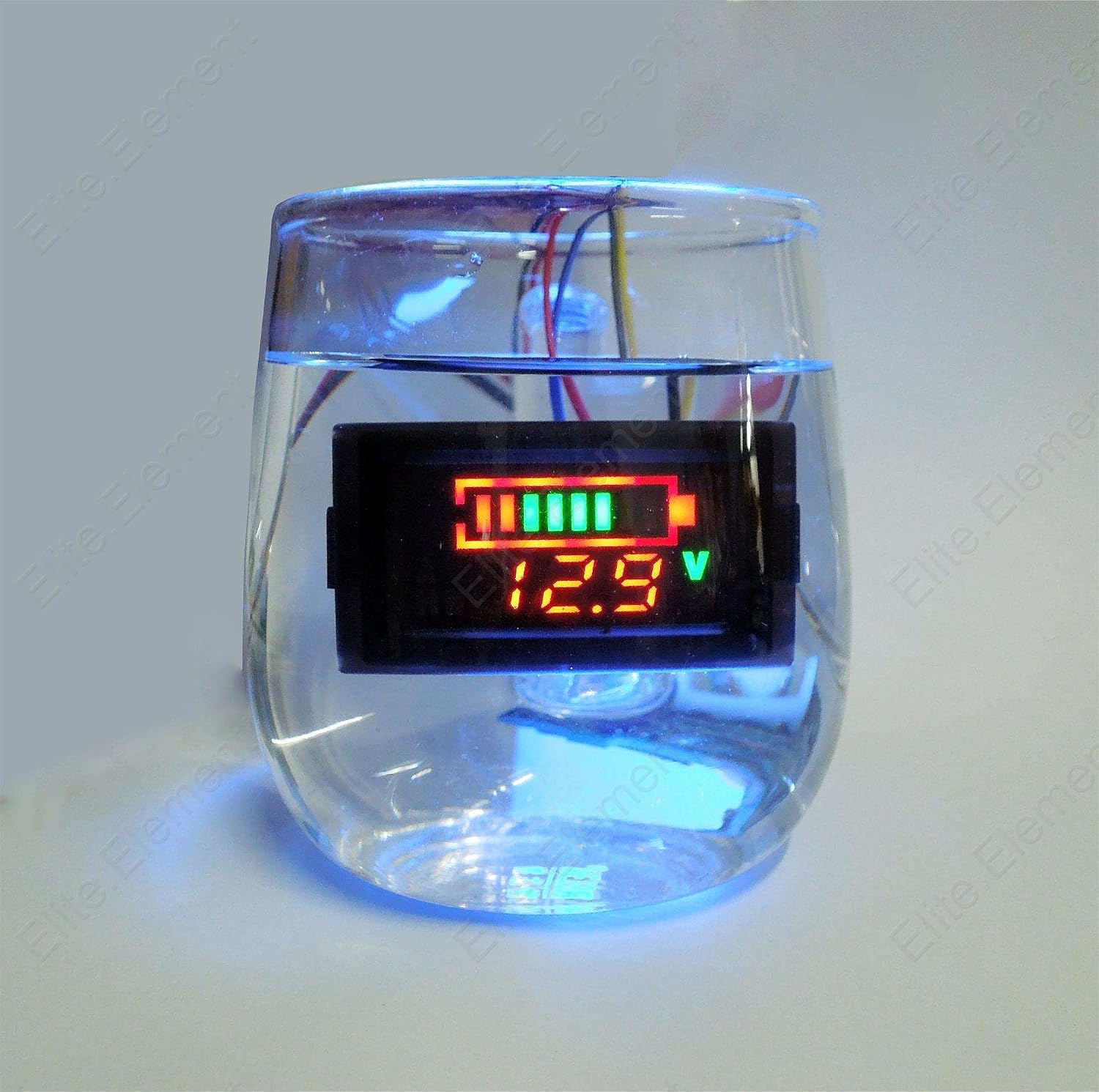

• It is Waterproof.
• it can identify Lead-acid battery, Lithium polymer battery, Lithium iron phosphate battery, NiMH battery. 12V, 24V, 36V, 48V, 56V, 60V, 64V, 72V, 84V, 96V.
• Voltage Range 6~120V, self-powered, no need external power.
• Voltage reading, decimal point move automatically, resolution 0.1V when voltage less than 100V, 0.1V when voltage higher than 100V.
